Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: HY
  • Model Number: HY-KXL-0190
  • Type: HVAC Systems
  • Material: Aluminum Extrusions
  • Shape: Round
  • Color: White(RAL9010), As customer's requirement
  • Size: Many Size Available
  • Quality: Only provide hight quality products
  • Finished: Power coated or Anodized
  • Installation: Easy to install
  • Maintain: Maintenance-free
  • OEM: Available
  • Customized service: Accept and can help customer to design & produce

Packaging & Delivery

Packaging Details Carton package, or Wooden case package, or as Customer request
Delivery Time 2 weeks



HVAC Aluminum Swirl Air Diffuser of Double Temperature Sensors
  •  Model:

HY- KXL

  •   Description:

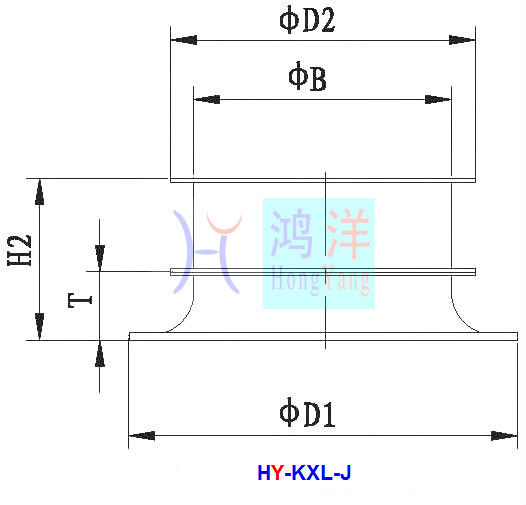

HY-KXL-J  General Type

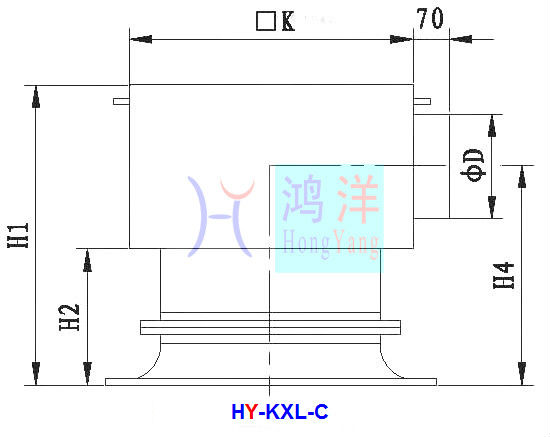

HY-KXL-C Side connection of supply air plenum box

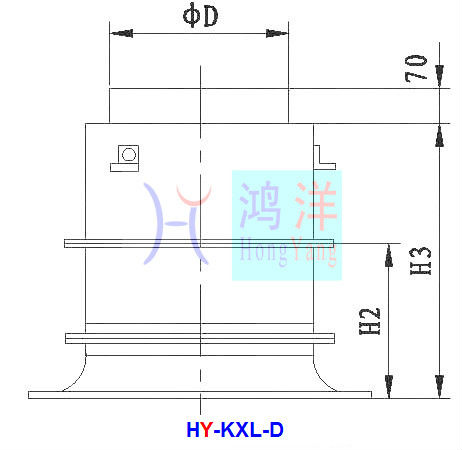

HY-KXL-D  Top connection of supply air plenum box


1. It is used as supply air outlet of central air-conditioning system.

2. The blade is designed in accordance with the principle of fluid-dynamics, which makes the airflow form eddy with certain initial velocity. Therefore, it can enlarge supply air distance and cover area. Also, it can make the airflow recycle sufficiently to reach the best effect in space.
3. It is mainly applicable for ventilation and supply air diffuser of air conditioner system. It is installed in the large building with floor height ≥3.8m, such as airport, theatre, exhibition hall, gymnasium, etc.
4. It is composed of round shell with diffuser and rotational blade. The rotational blade can be adjusted by hand operated or electrical control. The electrical control type can be equipped with BELIMO company’s electric actuator of LM series.
5.  The following standard dimension is available for choosing:

Specification and dimension (mm):

Specification

φB

φD

H1

H2

H3

H4

K

ΦD1

Φd2

T

Duct opening

φ315

318.5

248

483

203

425

342.5

435

464

382

63

φ412

φ400

403.5

313

603

238

534

420.5

500

567

464

80

φ515

φ630

633.5

398

848

383

748

615.5

750

871

708

125

φ810

φ800

803.5

498

1133

568

998

850.5

1000

1077

871

160

φ1015



Notice:

1.  It can be equipped with adjustable air damper. And has the feature: Large of supply rotary jet flow and induction ratio, fast of wind velocity decrement, etc.

2.  In ventilation and air conditioning system, it can be as supply air vent of large airflow and large temperature difference, in order to reduce the number of air vents.

3.  It can used as supply air vent in the low space within 3m, as well as in high space within 10m.

  • Advantages:
  1. High quality aluminum extrusions.
  2. Aluminum with powder coated or anodized.
  3. Color RAL 9010 or as customer’s requirement by spraying.
  4. Surface is processed by anodic oxidation, so it is smooth, clean, beautiful, corrosion resistance.
  5. Reasonable design, superior materials, manufacture of high precision, complete variety, easy installation and cleaning.
  6. Standard JG/T 14-2010 <Air outlets and inlets for ventilation and air conditioning> of Construction Industry Standard of China
  7. Standard JG/T 20-1999 <Method of testing for rating air distributor performance> of Construction Industry Standard of China
