Quick Details

  • Place of Origin: Sichuan, China (Mainland)
  • Brand Name: HY
  • Model Number: HY-KYS-0065
  • Type: HVAC Systems
  • Material: Aluminum Alloy
  • Shape: Round/Circular
  • Color: RAL Series Standard Colors
  • Size: Many sizes is available
  • Quality: Only provide hight quality products
  • Finished: Power coated or Anodized
  • Installation: Easy to install
  • Maintain: Maintenance-free
  • OEM: Available
  • Customized service: Accept and can help customer to design & produce

Packaging & Delivery

Packaging Details Standard export carton package, or Wooden case package, or as Customer request



Round Air Diffuser  for Ventilation System
  •  Model:

HY-KYS-P        Level Type

HY-KYS-T        Convexity  Type



Advantages



With these advantages of reasonable design, superior materials, manufacture of high precisioncomplete variety, easy installation and etc. The air diffusers/grilles are all made of high quality aluminum alloy extrusions, its surface is processed by anodic oxidation, so it is smooth, cleanbeautiful, corrosion resistance. The color of air diffuser/grille is natural color of aluminum-alloy (silver white), also can be power coated with other color according to customers’ requirement.



Certificate



Our company’s air diffuser/grille is manufactured in compliance with the standard JG/T 14-2010<Air outlets and inlets for ventilation and air conditioning> and JG/T 20-1999 <Method of testing for rating air distributor performance> of Construction Industry Standard of People’s Republic of China.


Description

HY-KYS-P        Level Type



  Specification and dimension (mm):



  HY-KYS-T       Convexity  Type



  Specification and dimension (mm):

Specification
(Φ)

Inside
dimension
(d)

Outside
dimension
(D)

Open hole
dimension
(O)

K

P

h

H

Φ150

154

343

310

9

138

100

26

Φ200

205

457

420

9

156

105

34

Φ250

257

572

530

13

168

105

49

Φ300

308

686

630

16

186

110

55

Φ350

356

749

648

18

228

120

67

Φ400

406

864

749

18

241

120

88

Φ450

457

1016

826

20

262

125

90



1. The angle of blade is fixed and the airflow blow out along with the angle of 45°. The airflow is in form of attachment (level supply).

2. It is installed on the ceilings of buildings. As the supply air diffuser, it can be used in conjunction with HY-KYT round diffuser air damper.

3. HY-KYS-P multilayer cone-shaped blade is parallel with outer frame. The inner core parts can be detached easily.

4. HY-KYS-T multilayer cone-shaped blade is step-shaped. It can supply larger free area and fully mix the main airflow and subsidiary airflow, so that the direct airflow is weakened. But its diffuse radius is large and supply air distance is short.

5. It can be equipped with damper, as following:

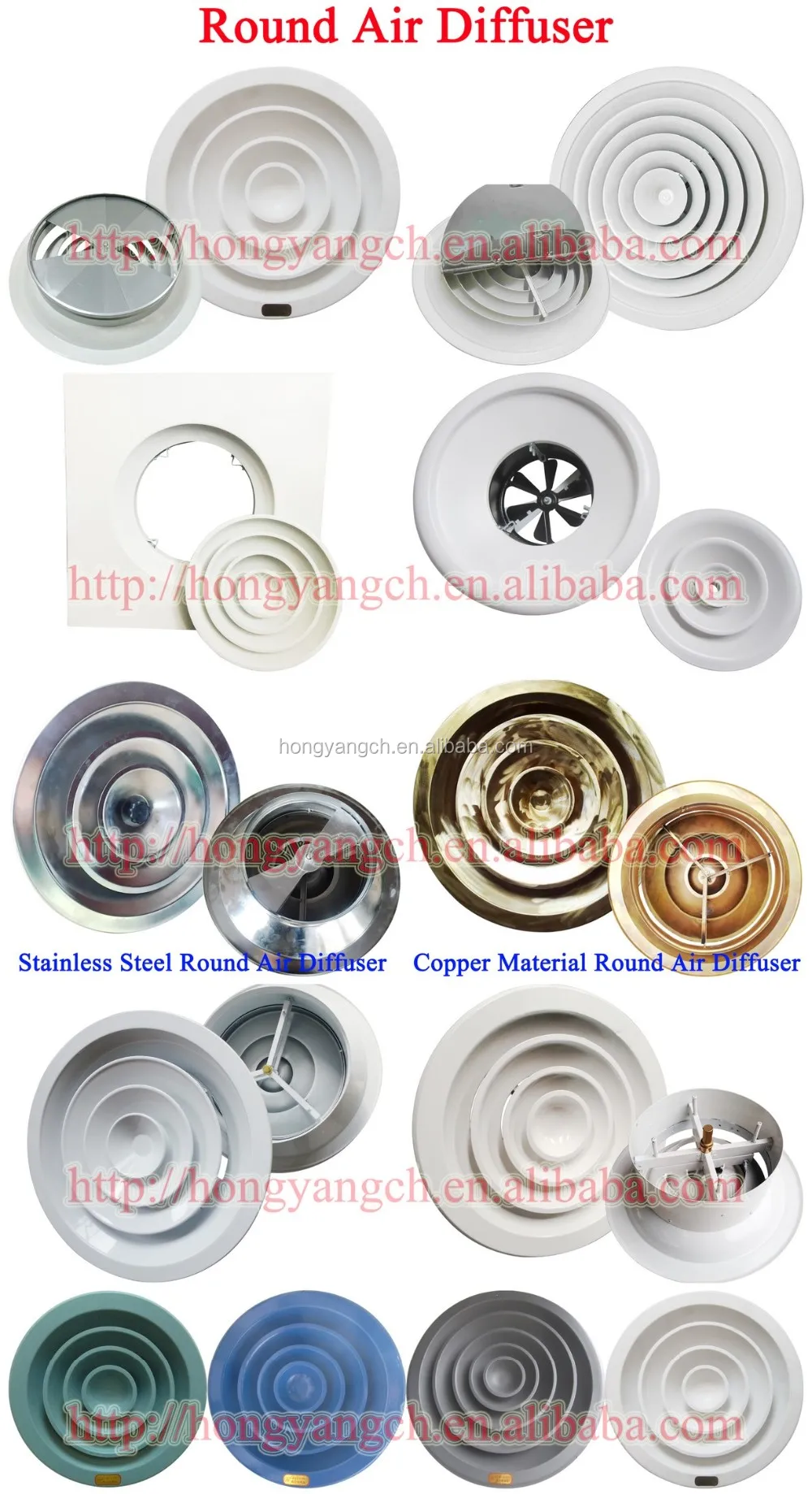

Product Pictures

Our Contact Information



Sichuan Hongyang HVAC Equipment Co., Ltd. (HY)



Add: B District High-tech Industrial Park, Chengdu City, Sichuan Province, P.R.China



Tel: 0086-28-83511339   Fax: 0086-28-83511339



Sales(at)hongyangch.com    Skype: Hy_daniel



Website: http://hongyangch.en.alibaba.com

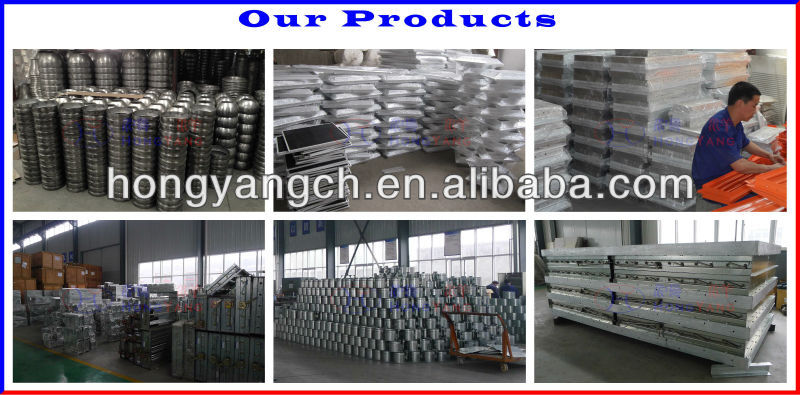

Products

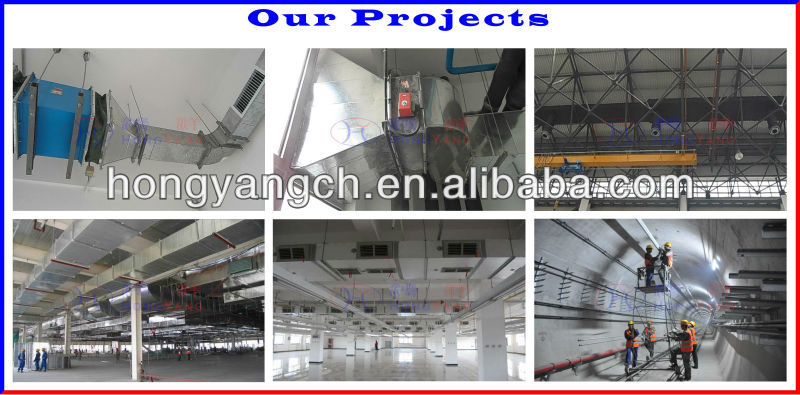

Projects



Certificate

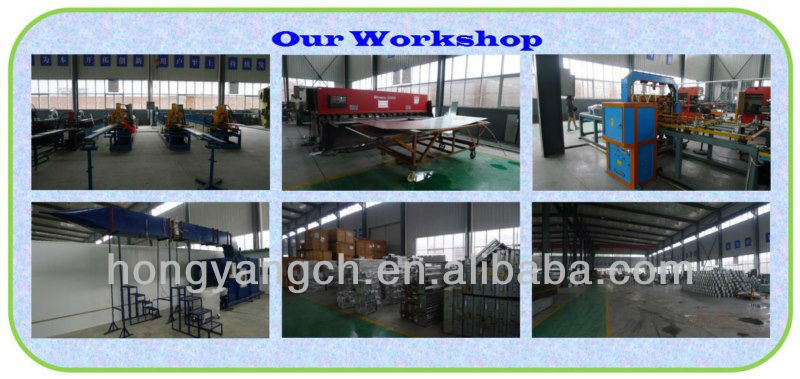

Factory
